| Motor | DC Servo |
| Drive Method | Direct Drive |
| Speeds | 33 1/3, 45, 78 rpm |
| Tonearm Type | S-Shaped |
| Effective Arm Length | 9.075" / 230.5 mm |
| Overhang | 0.63" / 16 mm |
| Tracking Error Angle | <3° |
| Torque | Starting: >1 kgf.cm |
| Brake System | Electronic |
| Cartridge Weight | Applicable: 3.5 to 8.5 g |
| Anti-Skating Range | 0 to 4 g |
| Signal to Noise Ratio | >50 dB |
| Wow and Flutter | <0.2% (WTD) @ 3 kHz (JIS) |
| Headshell | Model: AT-HS6 Mount: 1/2" Mount |
| Cartridge | AT-VM95E |
| Stylus | 0.3 x 0.7 Mil Elliptical |
| Output | 1 x Stereo RCA Phono / Line Pair (Switchable Preamplifier) 1 x USB 1.1 |
| Output Level | Phono: 4 mV Nominal at 1 kHz, 5 cm/sec Line: 240 mV Nominal at 1 kHz, 5 cm/sec |
| D/A Convertor | 16-Bit / 44.1 kHz or 48 kHz, USB Selectable |
| Gain | Phono Preamp: 36 dB Nominal, RIAA Equalised |
| Turntable Platter | Die-Cast Aluminium |
| System Requirements | Windows 7 or Above or Mac OS X or Above Available USB Port (USB 1.1 or Higher) |
| Power Requirements | 120 VAC, 60 Hz |
| Power Consumption | 3 W |
| Dimensions (W x H x D) | 17.8 x 5.57 x 13.86" / 452 x 141.6 x 352 mm |
| Weight | 17.6 lb / 8 kg Without Dust Cover |
KEY FEATURES
- Fully manual operation with 33 1/3, 45, and 78 rpm speeds.
- Anti-resonance, die-cast aluminium platter with a felt mat.
- Dua
l magnet phono cartridge with an elliptical stylus.
- The cartridge is compatible with nearly any VM95 series replacement stylus.
- S-shaped tonearm with hydraulically damped lift control and lockable rest.
- Switchable built-in preamplifier for phono- or line-level output.
- Stroboscopic platter with speed indicator.
- Variable pitch control with quartz speed lock.
- Removable plug-type target light for easier queueing in low light.
- Damped base construction for reduced low-frequency feedback colouration.
- AC adapter handles AC/DC conversion outside the chassis, helping to reduce noise in the signal chain.
- Convert your vinyl records to digital audio files with your recording software.

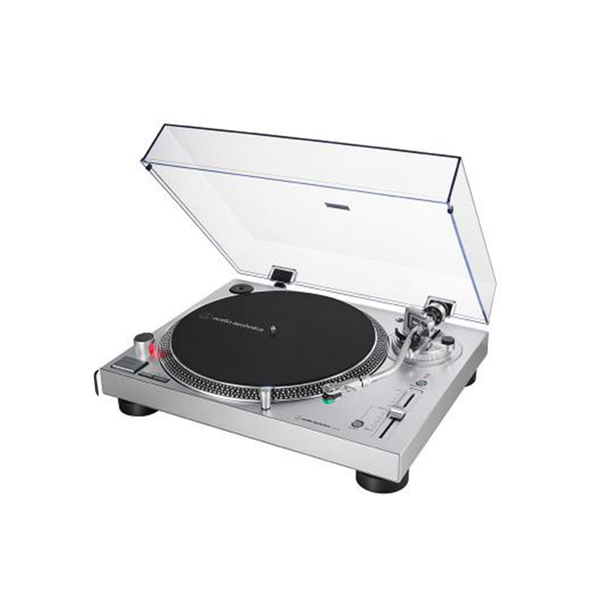

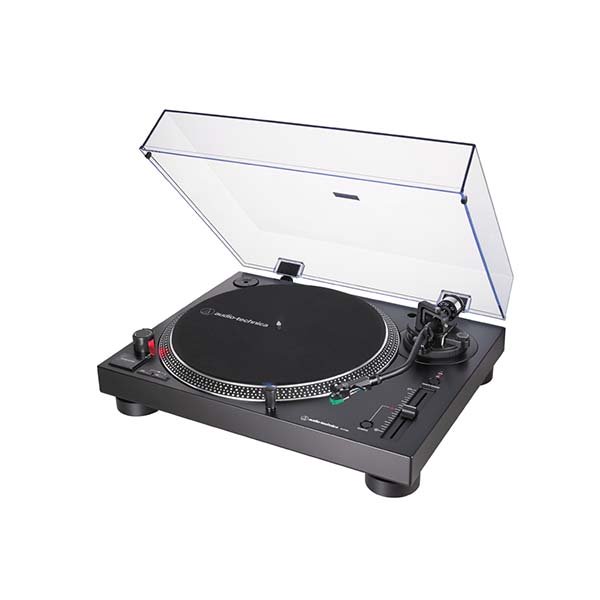

This update of the AT-LP120-USB turntable features a new DC servo direct-drive motor, along with adjustable dynamic anti-skate control and selectable phono preamplifier. The fully manual turntable plays 33-1/3, 45, and 78 RPM records and is equipped with a USB output that allows direct connection to your computer. Just download the free Mac- and PC-compatible Audacity recording software (or software of your choice) and start converting your records to digital audio files. But in addition to the USB output, the turntable also comes with a detachable dual RCA output cable and is equipped with a built-in selectable phono preamp so you can connect directly to your home stereo, whether it has a dedicated phono input or not.
